fix8  version 1.4.0
Open Source C++ FIX Framework
Public Member Functions | Protected Attributes | Private Attributes | Friends | List of all members
FIX8::BaseField Class Referenceabstract

The base field class (ABC) for all fields. More...

#include <field.hpp>

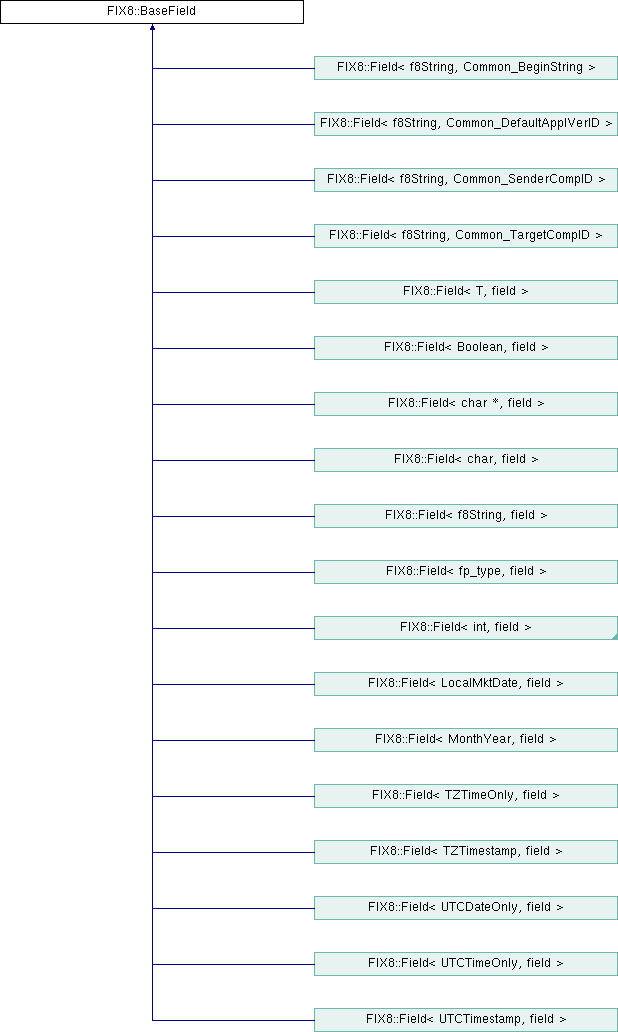

Inheritance diagram for FIX8::BaseField:
FIX8::Field< f8String, Common_BeginString > FIX8::Field< f8String, Common_DefaultApplVerID > FIX8::Field< f8String, Common_SenderCompID > FIX8::Field< f8String, Common_TargetCompID > FIX8::Field< T, field > FIX8::Field< Boolean, field > FIX8::Field< char *, field > FIX8::Field< char, field > FIX8::Field< f8String, field > FIX8::Field< fp_type, field > FIX8::Field< int, field > FIX8::Field< LocalMktDate, field > FIX8::Field< MonthYear, field > FIX8::Field< TZTimeOnly, field > FIX8::Field< TZTimestamp, field > FIX8::Field< UTCDateOnly, field > FIX8::Field< UTCTimeOnly, field > FIX8::Field< UTCTimestamp, field >

Public Member Functions

 BaseField (unsigned short fnum, const RealmBase *rlm=nullptr)

virtual ~BaseField ()
 Dtor. More...

unsigned short get_tag () const

virtual std::ostream & print (std::ostream &os) const =0

virtual size_t print (char *to) const =0

virtual FieldTrait::FieldType get_underlying_type () const =0

virtual BaseField * copy ()=0

virtual int get_rlm_idx () const

template<typename T >
T & from ()

template<typename T >
const T * as () const

size_t encode (std::ostream &os) const

size_t encode (char *to) const

bool same_base (const BaseField &that) const
 BaseField Equivalence test. More...

virtual bool operator== (const BaseField &that) const =0
 Equivalence operator. More...

virtual bool operator< (const BaseField &that) const =0
 Less than operator. More...

virtual bool operator> (const BaseField &that) const =0
 Greater than operator. More...

bool operator!= (const BaseField &that) const
 Inequivalence operator. More...

bool operator<= (const BaseField &that) const
 Less or equal to operator. More...

bool operator>= (const BaseField &that) const
 Greater or equal to operator. More...

const RealmBase * get_realm () const


Protected Attributes

const RealmBase * _rlm


Private Attributes

const unsigned short _fnum


Friends

class MessageBase

std::ostream & operator<< (std::ostream &os, const BaseField &what)


Detailed Description

The base field class (ABC) for all fields.

Definition at line 127 of file field.hpp.

Constructor & Destructor Documentation

FIX8::BaseField::BaseField ( unsigned short  fnum,
const RealmBase *  rlm = nullptr
)
inline

Ctor.

Parameters
fnumfield num for this field
rlmpointer to the realmbase for this field (if available)

Definition at line 138 of file field.hpp.

138 : _fnum(fnum), _rlm(rlm) {}
FIX8::BaseField::_rlm
const RealmBase * _rlm
Definition: field.hpp:132
FIX8::BaseField::_fnum
const unsigned short _fnum
Definition: field.hpp:129
virtual FIX8::BaseField::~BaseField ( )
inlinevirtual

Dtor.

Definition at line 141 of file field.hpp.

141 {}

Member Function Documentation

template<typename T >
const T* FIX8::BaseField::as ( ) const
inline

Cast this field to the supplied type.

Template Parameters
Ttarget type
Returns
pointer to the cast field

Definition at line 179 of file field.hpp.

179 { return static_cast<T*>(this); }
virtual BaseField* FIX8::BaseField::copy ( )
pure virtual

Copy this field.

Returns
the copy

Implemented in FIX8::Field< Boolean, field >, FIX8::Field< TZTimestamp, field >, FIX8::Field< TZTimeOnly, field >, FIX8::Field< MonthYear, field >, FIX8::Field< LocalMktDate, field >, FIX8::Field< UTCDateOnly, field >, FIX8::Field< UTCTimeOnly, field >, FIX8::Field< UTCTimestamp, field >, FIX8::Field< char, field >, FIX8::Field< fp_type, field >, FIX8::Field< f8String, field >, FIX8::Field< char *, field >, and FIX8::Field< int, field >.

size_t FIX8::BaseField::encode ( std::ostream &  os) const
inline

Encode this field to the supplied stream.

Parameters
osstream to encode to
Returns
the number of bytes encoded

Definition at line 184 of file field.hpp.

References FIX8::default_assignment_separator(), and FIX8::default_field_separator().

185  {
186  const std::ios::pos_type where(os.tellp());
187  os << _fnum << default_assignment_separator << *this << default_field_separator;
188  return os.tellp() - where;
189  }
FIX8::default_assignment_separator
const unsigned char default_assignment_separator('=')
default FIX assignment separator (=)
FIX8::BaseField::_fnum
const unsigned short _fnum
Definition: field.hpp:129
FIX8::default_field_separator
const unsigned char default_field_separator(0x1)
default FIX field separator (^A)
size_t FIX8::BaseField::encode ( char *  to) const
inline

Encode this field to the supplied stream. ULL version.

Parameters
tobuffer to encode to
Returns
the number of bytes encoded

Definition at line 194 of file field.hpp.

References FIX8::default_assignment_separator(), FIX8::default_field_separator(), FIX8::itoa(), and print().

195  {
196  const char *cur_ptr(to);
197  to += itoa(_fnum, to, 10);
198  *to++ = default_assignment_separator;
199  to += print(to);
200  *to++ = default_field_separator;
201  return to - cur_ptr;
202  }
FIX8::itoa
size_t itoa(T value, char *result, int base)
Fast itoa.
Definition: f8utils.hpp:647
FIX8::default_assignment_separator
const unsigned char default_assignment_separator('=')
default FIX assignment separator (=)
FIX8::BaseField::_fnum
const unsigned short _fnum
Definition: field.hpp:129
FIX8::default_field_separator
const unsigned char default_field_separator(0x1)
default FIX field separator (^A)
FIX8::BaseField::print
virtual std::ostream & print(std::ostream &os) const =0
template<typename T >
T& FIX8::BaseField::from ( )
inline

Cast this field to the supplied type.

Template Parameters
Ttarget type
Returns
reference to the cast field

Definition at line 173 of file field.hpp.

Referenced by FIX8::Field< int, field >::set(), FIX8::Field< f8String, field >::set(), FIX8::Field< fp_type, field >::set(), FIX8::Field< char, field >::set(), FIX8::Field< UTCTimestamp, field >::set(), FIX8::Field< UTCTimeOnly, field >::set(), FIX8::Field< UTCDateOnly, field >::set(), FIX8::Field< LocalMktDate, field >::set(), FIX8::Field< MonthYear, field >::set(), FIX8::Field< TZTimeOnly, field >::set(), FIX8::Field< TZTimestamp, field >::set(), FIX8::Field< Boolean, field >::set(), and FIX8::Field< f8String, field >::set_from_raw().

173 { return *static_cast<T*>(this); }
const RealmBase* FIX8::BaseField::get_realm ( ) const
inline

Get the realm pointer for this field.

Returns
the realm pointer

Definition at line 241 of file field.hpp.

References _rlm.

241 { return _rlm; }
FIX8::BaseField::_rlm
const RealmBase * _rlm
Definition: field.hpp:132
virtual int FIX8::BaseField::get_rlm_idx ( ) const
inlinevirtual

Get the realm index of this field.

Returns
the realm index

Reimplemented in FIX8::Field< Boolean, field >, FIX8::Field< char, field >, FIX8::Field< fp_type, field >, FIX8::Field< f8String, field >, FIX8::Field< char *, field >, and FIX8::Field< int, field >.

Definition at line 167 of file field.hpp.

167 { return -1; }
unsigned short FIX8::BaseField::get_tag ( ) const
inline

Get the fix tag id of this field.

Returns
fix tag id (field num)

Definition at line 145 of file field.hpp.

References _fnum.

Referenced by FIX8::ConsoleMenu::EditMsg().

145 { return _fnum; }
FIX8::BaseField::_fnum
const unsigned short _fnum
Definition: field.hpp:129
virtual FieldTrait::FieldType FIX8::BaseField::get_underlying_type ( ) const
pure virtual

Get the underlying FieldType for this field

Returns
field type

Implemented in FIX8::Field< Boolean, field >, FIX8::Field< TZTimestamp, field >, FIX8::Field< TZTimeOnly, field >, FIX8::Field< MonthYear, field >, FIX8::Field< LocalMktDate, field >, FIX8::Field< UTCDateOnly, field >, FIX8::Field< UTCTimeOnly, field >, FIX8::Field< UTCTimestamp, field >, FIX8::Field< char, field >, FIX8::Field< fp_type, field >, FIX8::Field< f8String, field >, FIX8::Field< char *, field >, and FIX8::Field< int, field >.

bool FIX8::BaseField::operator!= ( const BaseField &  that) const
inline

Inequivalence operator.

Parameters
thatfield to compare
Returns
true if not the same

Definition at line 227 of file field.hpp.

227 { return !(*this == that); }
virtual bool FIX8::BaseField::operator< ( const BaseField &  that) const
pure virtual

Less than operator.

Parameters
thatfield to compare
Returns
true if less than

Implemented in FIX8::Field< Boolean, field >, FIX8::Field< TZTimestamp, field >, FIX8::Field< TZTimeOnly, field >, FIX8::Field< MonthYear, field >, FIX8::Field< LocalMktDate, field >, FIX8::Field< UTCDateOnly, field >, FIX8::Field< UTCTimeOnly, field >, FIX8::Field< UTCTimestamp, field >, FIX8::Field< char, field >, FIX8::Field< fp_type, field >, FIX8::Field< f8String, field >, FIX8::Field< char *, field >, and FIX8::Field< int, field >.

bool FIX8::BaseField::operator<= ( const BaseField &  that) const
inline

Less or equal to operator.

Parameters
thatfield to compare
Returns
true if less than or equal to

Definition at line 232 of file field.hpp.

232 { return *this < that || *this == that; }
virtual bool FIX8::BaseField::operator== ( const BaseField &  that) const
pure virtual

Equivalence operator.

Parameters
thatfield to compare
Returns
true if same

Implemented in FIX8::Field< Boolean, field >, FIX8::Field< TZTimestamp, field >, FIX8::Field< TZTimeOnly, field >, FIX8::Field< MonthYear, field >, FIX8::Field< LocalMktDate, field >, FIX8::Field< UTCDateOnly, field >, FIX8::Field< UTCTimeOnly, field >, FIX8::Field< UTCTimestamp, field >, FIX8::Field< char, field >, FIX8::Field< fp_type, field >, FIX8::Field< f8String, field >, FIX8::Field< char *, field >, and FIX8::Field< int, field >.

virtual bool FIX8::BaseField::operator> ( const BaseField &  that) const
pure virtual

Greater than operator.

Parameters
thatfield to compare
Returns
true if greater than

Implemented in FIX8::Field< Boolean, field >, FIX8::Field< TZTimestamp, field >, FIX8::Field< TZTimeOnly, field >, FIX8::Field< MonthYear, field >, FIX8::Field< LocalMktDate, field >, FIX8::Field< UTCDateOnly, field >, FIX8::Field< UTCTimeOnly, field >, FIX8::Field< UTCTimestamp, field >, FIX8::Field< char, field >, FIX8::Field< fp_type, field >, FIX8::Field< f8String, field >, FIX8::Field< char *, field >, and FIX8::Field< int, field >.

bool FIX8::BaseField::operator>= ( const BaseField &  that) const
inline

Greater or equal to operator.

Parameters
thatfield to compare
Returns
true if greater than or equal to

Definition at line 237 of file field.hpp.

237 { return *this > that || *this == that; }
virtual std::ostream& FIX8::BaseField::print ( std::ostream &  os) const
pure virtual

Print this field to the supplied stream. Used by the Fix8 printer.

Parameters
osstream to print to
Returns
the stream

Implemented in FIX8::Field< Boolean, field >, FIX8::Field< TZTimestamp, field >, FIX8::Field< TZTimeOnly, field >, FIX8::Field< MonthYear, field >, FIX8::Field< LocalMktDate, field >, FIX8::Field< UTCDateOnly, field >, FIX8::Field< UTCTimeOnly, field >, FIX8::Field< UTCTimestamp, field >, FIX8::Field< char, field >, FIX8::Field< fp_type, field >, FIX8::Field< f8String, field >, FIX8::Field< char *, field >, and FIX8::Field< int, field >.

Referenced by encode(), FIX8::Field< UTCTimestamp, field >::print(), FIX8::Field< UTCTimeOnly, field >::print(), FIX8::Field< UTCDateOnly, field >::print(), FIX8::Field< LocalMktDate, field >::print(), FIX8::Field< MonthYear, field >::print(), and FIX8::Session::sequence_check().

virtual size_t FIX8::BaseField::print ( char *  to) const
pure virtual

Print this field to the supplied buffer. Used for encoding.

Parameters
tobuffer to print to
Returns
number bytes encoded

Implemented in FIX8::Field< Boolean, field >, FIX8::Field< TZTimestamp, field >, FIX8::Field< TZTimeOnly, field >, FIX8::Field< MonthYear, field >, FIX8::Field< LocalMktDate, field >, FIX8::Field< UTCDateOnly, field >, FIX8::Field< UTCTimeOnly, field >, FIX8::Field< UTCTimestamp, field >, FIX8::Field< char, field >, FIX8::Field< fp_type, field >, FIX8::Field< f8String, field >, FIX8::Field< char *, field >, and FIX8::Field< int, field >.

bool FIX8::BaseField::same_base ( const BaseField &  that) const
inline

BaseField Equivalence test.

Parameters
thatfield to compare
Returns
true if same

Definition at line 207 of file field.hpp.

References _fnum.

Referenced by FIX8::Field< int, field >::operator<(), FIX8::Field< f8String, field >::operator<(), FIX8::Field< fp_type, field >::operator<(), FIX8::Field< char, field >::operator<(), FIX8::Field< UTCTimestamp, field >::operator<(), FIX8::Field< UTCTimeOnly, field >::operator<(), FIX8::Field< UTCDateOnly, field >::operator<(), FIX8::Field< LocalMktDate, field >::operator<(), FIX8::Field< MonthYear, field >::operator<(), FIX8::Field< TZTimeOnly, field >::operator<(), FIX8::Field< TZTimestamp, field >::operator<(), FIX8::Field< Boolean, field >::operator<(), FIX8::Field< int, field >::operator==(), FIX8::Field< f8String, field >::operator==(), FIX8::Field< fp_type, field >::operator==(), FIX8::Field< char, field >::operator==(), FIX8::Field< UTCTimestamp, field >::operator==(), FIX8::Field< UTCTimeOnly, field >::operator==(), FIX8::Field< UTCDateOnly, field >::operator==(), FIX8::Field< LocalMktDate, field >::operator==(), FIX8::Field< MonthYear, field >::operator==(), FIX8::Field< TZTimeOnly, field >::operator==(), FIX8::Field< TZTimestamp, field >::operator==(), FIX8::Field< Boolean, field >::operator==(), FIX8::Field< int, field >::operator>(), FIX8::Field< f8String, field >::operator>(), FIX8::Field< fp_type, field >::operator>(), FIX8::Field< char, field >::operator>(), FIX8::Field< UTCTimestamp, field >::operator>(), FIX8::Field< UTCTimeOnly, field >::operator>(), FIX8::Field< UTCDateOnly, field >::operator>(), FIX8::Field< LocalMktDate, field >::operator>(), FIX8::Field< MonthYear, field >::operator>(), FIX8::Field< TZTimeOnly, field >::operator>(), FIX8::Field< TZTimestamp, field >::operator>(), and FIX8::Field< Boolean, field >::operator>().

207 { return that._fnum == _fnum; }
FIX8::BaseField::_fnum
const unsigned short _fnum
Definition: field.hpp:129

Friends And Related Function Documentation

friend class MessageBase
friend

Definition at line 248 of file field.hpp.

std::ostream& operator<< ( std::ostream &  os,
const BaseField &  what
)
friend

Inserter friend.

Parameters
osstream to send to
whatBaseField reference
Returns
stream

Definition at line 247 of file field.hpp.

247 { return what.print(os); }

Member Data Documentation

const unsigned short FIX8::BaseField::_fnum
private

Definition at line 129 of file field.hpp.

Referenced by FIX8::MessageBase::add_field(), FIX8::MessageBase::check_set_rlm(), get_tag(), and same_base().

const RealmBase* FIX8::BaseField::_rlm
protected

Definition at line 132 of file field.hpp.

Referenced by FIX8::MessageBase::check_set_rlm(), get_realm(), FIX8::Field< int, field >::get_rlm_idx(), FIX8::Field< f8String, field >::get_rlm_idx(), FIX8::Field< fp_type, field >::get_rlm_idx(), FIX8::Field< char, field >::get_rlm_idx(), FIX8::Field< Boolean, field >::get_rlm_idx(), FIX8::Field< int, field >::is_valid(), FIX8::Field< f8String, field >::is_valid(), FIX8::Field< fp_type, field >::is_valid(), and FIX8::Field< char, field >::is_valid().

The documentation for this class was generated from the following file:
