FIX8::Configuration Class Reference

Class to encapsulate a Fix8 configuration. More...

#include <configuration.hpp>

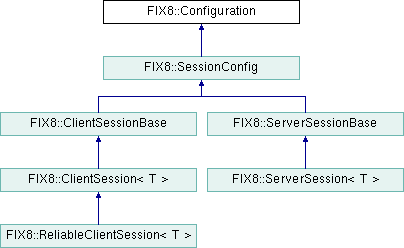

Inheritance diagram for FIX8::Configuration:

Public Types
enum	group_types {   g_sessions, g_persisters, g_loggers, g_server_group,   g_ssl_context, g_schedules, g_logins, g_client_group,   g_count }
enum	Logtype { session_log, protocol_log }

Public Member Functions
const XmlElement *	find_group (group_types type, const std::string &tag) const
	Configuration (const std::string &xmlfile, bool do_process=false)
	Configuration (std::istream &istr, bool do_process=false)
virtual	~Configuration ()
	Dtor. More...
F8API int	process ()
const XmlElement *	get_session (const unsigned num) const
F8API Connection::Role	get_role (const XmlElement *from) const
F8API size_t	get_addresses (const XmlElement *from, std::vector< Server > &target) const
F8API Poco::Net::SocketAddress	get_address (const XmlElement *from) const
F8API Poco::Net::IPAddress	get_ip (const XmlElement *from) const
template<typename T >
T	get_logflags (const std::string &tag, const std::vector< std::string > &names, const XmlElement *from, Logger::LogPositions *positions=nullptr) const
F8API std::string &	get_logname (const XmlElement *from, std::string &to, const SessionID *sid=nullptr) const
unsigned	get_connect_timeout (const XmlElement *from, const unsigned def=defaults::connect_timeout) const
unsigned	get_retry_interval (const XmlElement *from, const unsigned def=defaults::retry_interval) const
unsigned	get_retry_count (const XmlElement *from, const int def=defaults::login_retries) const
unsigned	get_tcp_recvbuf_sz (const XmlElement *from, const unsigned def=0) const
unsigned	get_tcp_sendbuf_sz (const XmlElement *from, const unsigned def=0) const
unsigned	get_version (const XmlElement *from, const unsigned def=0) const
unsigned	get_tabsize (const XmlElement *from, const unsigned def=defaults::tabsize) const
unsigned	get_logfile_rotation (const XmlElement *from, const unsigned def=defaults::log_rotation) const
unsigned	get_heartbeat_interval (const XmlElement *from, const unsigned def=defaults::hb_interval) const
bool	get_tcp_nodelay (const XmlElement *from, const bool def=true) const
bool	get_tcp_keepalive (const XmlElement *from, const bool def=false) const
bool	get_tcp_reuseaddr (const XmlElement *from, const bool def=false) const
int	get_tcp_linger (const XmlElement *from, const int def=-1) const
bool	get_silent_disconnect (const XmlElement *from, const bool def=false) const
bool	get_enforce_compids_flag (const XmlElement *from, const bool def=true) const
bool	get_ignore_logon_sequence_check_flag (const XmlElement *from, const bool def=false) const
bool	get_no_chksum_flag (const XmlElement *from, const bool def=false) const
bool	get_permissive_mode_flag (const XmlElement *from, const bool def=false) const
bool	get_reset_sequence_number_flag (const XmlElement *from, const bool def=false) const
bool	get_always_seqnum_assign (const XmlElement *from, const bool def=false) const
F8API ProcessModel	get_process_model (const XmlElement *from) const
default_appl_ver_id	get_default_appl_ver_id (const XmlElement *from) const
sender_comp_id	get_sender_comp_id (const XmlElement *from) const
target_comp_id	get_target_comp_id (const XmlElement *from) const
F8API Persister *	create_persister (const XmlElement *from, const SessionID *sid=nullptr, bool flag=false) const
F8API Logger *	create_logger (const XmlElement *from, const Logtype ltype, const SessionID *sid=nullptr) const
F8API Schedule	create_schedule (const XmlElement *from) const
F8API Clients	create_clients (const XmlElement *from) const
F8API Schedule	create_login_schedule (const XmlElement *from) const
F8API Session_Schedule *	create_session_schedule (const XmlElement *from) const
F8API unsigned	get_all_sessions (std::vector< const XmlElement * > &target, const Connection::Role role=Connection::cn_unknown) const
const XmlElement *	get_root () const
template<typename T >
T	get_logflags (const string &tag, const vector< string > &names, const XmlElement *from, Logger::LogPositions *positions) const

Protected Member Functions
bool	from_or_default (const XmlElement *from, const f8String &tag, f8String &target) const
template<typename T >
T &	get_string_field (const XmlElement *from, const std::string &tag, T &to) const
Tickval::ticks	get_time_field (const XmlElement *from, const std::string &tag, bool timeonly=false) const
template<typename T >
T	find_or_default (const XmlElement *from, const std::string &tag, const T def) const

Private Types
using	ConfigMap = std::map< const std::string, const XmlElement * >

Private Member Functions
const XmlElement *	find_element (const std::string &tag, const ConfigMap &from) const
unsigned	load_map (const std::string &tag, ConfigMap &map_name, const bool is_session=false)

Private Attributes
const XmlElement *	_root
const XmlElement *	_default
std::vector< ConfigMap >	_groups
std::vector< const XmlElement * >	_allsessions

Static Private Attributes
static RegExp	_ipexp

Detailed Description

Class to encapsulate a Fix8 configuration.

Definition at line 92 of file configuration.hpp.

Member Typedef Documentation

using FIX8::Configuration::ConfigMap = std::map<const std::string, const XmlElement *>

private

Definition at line 97 of file configuration.hpp.

Member Enumeration Documentation

enum FIX8::Configuration::group_types

Enumerator
g_sessions
g_persisters
g_loggers
g_server_group
g_ssl_context
g_schedules
g_logins
g_client_group
g_count

Definition at line 109 of file configuration.hpp.

   {
      g_sessions, g_persisters, g_loggers, g_server_group,
      g_ssl_context, g_schedules, g_logins, g_client_group,
      g_count
   };

enum FIX8::Configuration::Logtype

Enumerator
session_log
protocol_log

Definition at line 205 of file configuration.hpp.

{ session_log, protocol_log };

Constructor & Destructor Documentation

FIX8::Configuration::Configuration ( const std::string &  xmlfile, bool  do_process = false  )

inline

Ctor.

Parameters

xmlfile	xml config filename.
do_process	if true, process the file on construction

Definition at line 210 of file configuration.hpp.

References FIX8::exist(), and process().

      : _root(XmlElement::Factory(xmlfile)),
      _default(_root ? _root->find("fix8/default") : nullptr),
      _groups(g_count)
   {
      if (!exist(xmlfile))
         throw ConfigurationError("config file not found", xmlfile);
      if (do_process)
         process();
   }

FIX8::Configuration::Configuration ( std::istream &  istr, bool  do_process = false  )

inline

Ctor.

Parameters

istr	xml stream
do_process	if true, process the stream on construction

Definition at line 224 of file configuration.hpp.

References process().

      : _root(XmlElement::Factory(istr, "stream")),
      _default(_root ? _root->find("fix8/default") : nullptr),
      _groups(g_count)
   {
      if (do_process)
         process();
   }

virtual FIX8::Configuration::~Configuration ( )

inlinevirtual

Dtor.

Definition at line 234 of file configuration.hpp.

{}

Member Function Documentation

Clients Configuration::create_clients

(

const XmlElement *

from

)

const

Create clients object from a session entity.

Parameters

from	xml entity to search

Returns

Clients

Definition at line 313 of file configuration.cpp.

References XmlElement::find(), and find_group().

Referenced by FIX8::SessionConfig::SessionConfig().

{
   string name;
   const XmlElement *which;
   Clients clients;
   if (from_or_default(from, "target_comp_id", name) && (which = find_group(g_client_group, name)))
   {
      XmlElement::XmlSet slist;
      if (which->find("client_group/client", slist))
      {
         // <client name="Goldsteins" target_comp_id="DLD_TEX" ip="192.168.0.17" active="true" />
         for(const auto *pp : slist)
         {
            string name, tci;
            const Poco::Net::IPAddress addr(get_ip(pp));
            if (pp->GetAttr("name", name) && pp->GetAttr("target_comp_id", tci) && pp->FindAttr("active", true))
               if (!clients.insert({tci, Client(name, addr)}).second)
                  throw ConfigurationError("Failed to add client from client_group", tci);
         }
      }
   }

   return clients;
}

Logger * Configuration::create_logger	(	const XmlElement *	from,
		const Logtype	ltype,
		const SessionID *	sid = nullptr
	)		const

Create a new logger object from a session entity.

Parameters

from	xml entity to search
ltype	log type
sid	optional session id to build name from

Returns

new logger or 0 if unable to create

Definition at line 256 of file configuration.cpp.

References FIX8::Logger::_bit_names, FIX8::Logger::_level_names, FIX8::Logger::All, find_group(), XmlElement::FindAttrRef(), XmlElement::GetAttr(), XmlElement::HasAttr(), FIX8::Logger::None, FIX8::Logger::StdFlags, FIX8::trim(), and FIX8::Logger::xml.

Referenced by FIX8::Session::handle_logon().

{
   string name;
   if (from_or_default(from, ltype == session_log ? "session_log" : "protocol_log", name))
   {
      const XmlElement *which(find_group(g_loggers, name));
      if (which)
      {
         Logger::LogPositions positions;
         string type;

         if (which->GetAttr("type", type)
            && ((type % "session" && ltype == session_log) || (type % "protocol" && ltype == protocol_log)))
         {
            string logname("logname_not_set.log"), levstr, delim(" ");
            which->FindAttrRef("filename", logname);
            trim(logname);
            if (which->GetAttr("delimiter", delim) && delim.size() > 2) // "|" or "<>" or "{}" etc
               throw ConfigurationError("invalid logging field delimiter");

            which->GetAttr("levels", levstr);
            const Logger::Levels levels(levstr.empty() || levstr % "All"
                  ? Logger::Levels(Logger::All) : levstr % "None"
                  ? Logger::Levels(Logger::None) : get_logflags<Logger::Levels>("levels", Logger::_level_names, which));

            const Logger::LogFlags flags(which->HasAttr("flags")
               ? get_logflags<Logger::LogFlags>("flags", Logger::_bit_names, which, &positions) : Logger::LogFlags(Logger::StdFlags));

            if (logname[0] == '|')
            {
#ifndef FIX8_HAVE_POPEN
               throw ConfigurationError("popen not supported on your platform");
#endif
               return new PipeLogger(logname, flags, levels, delim, positions);
            }

            RegMatch match;
            if (_ipexp.SearchString(match, logname, 3) == 3)
            {
               f8String ip, port;
               _ipexp.SubExpr(match, logname, ip, 0, 1);
               _ipexp.SubExpr(match, logname, port, 0, 2);
               return new BCLogger(ip, stoul(port), flags, levels, delim, positions);
            }

            get_logname(which, logname, sid); // only applies to file loggers
            if (flags & Logger::xml)
               return new XmlFileLogger(logname, flags, levels, delim, positions, get_logfile_rotation(which));
            return new FileLogger(logname, flags, levels, delim, positions, get_logfile_rotation(which));
         }
      }
   }

   return nullptr;
}

Schedule Configuration::create_login_schedule

(

const XmlElement *

from

)

const

Create login schedule object from a session entity.

Parameters

from	xml entity to search

Returns

login Schedule

Definition at line 177 of file configuration.cpp.

References find_group().

Referenced by FIX8::SessionConfig::SessionConfig().

{
   string name;
   const XmlElement *which;
   return from_or_default(from, "login", name) && (which = find_group(g_logins, name))
      ? create_schedule(which) : Schedule();
}

Persister * Configuration::create_persister	(	const XmlElement *	from,
		const SessionID *	sid = nullptr,
		bool	flag = false
	)		const

Create a new persister object from a session entity.

Parameters

from	xml entity to search
sid	optional session id to build name from
flag	additional flag for persister use

Returns

new persister or 0 if unable to create

Definition at line 186 of file configuration.cpp.

References FIX8::defaults::connect_timeout, find_group(), XmlElement::FindAttr(), FIX8::SessionID::get_senderCompID(), FIX8::SessionID::get_targetCompID(), and XmlElement::GetAttr().

Referenced by FIX8::Session::handle_logon().

{
   string name, type;
   const XmlElement *which;
   if (from_or_default(from, "persist", name) && (which = find_group(g_persisters, name)) && which->GetAttr("type", type))
   {
      if (type == "mem")
         return new MemoryPersister;

      string dir("./"), db("persist_db");
      which->GetAttr("dir", dir);
      which->GetAttr("db", db) || which->GetAttr("session_prefix", db);

      if (sid)
         db += ('.' + sid->get_senderCompID()() + '.' + sid->get_targetCompID()());
      else if (which->FindAttr("use_session_id", false))
         db += ('.' + get_sender_comp_id(from)() + '.' + get_target_comp_id(from)());

#if defined FIX8_HAVE_LIBMEMCACHED
      if (type == "memcached")
      {
         string config_str;
         if (which->GetAttr("config_string", config_str))
         {
            unique_ptr<MemcachedPersister> result(new MemcachedPersister);
            if (result->initialise(config_str, db, flag))
               return result.release();
         }
         else
            throw ConfigurationError("memcached: config_string attribute must be given when using memcached");
      }
      else
#endif
#if defined FIX8_HAVE_LIBHIREDIS
      if (type == "redis")
      {
         string host_str;
         if (which->GetAttr("host", host_str))
         {
            unique_ptr<HiredisPersister> result(new HiredisPersister);
            if (result->initialise(host_str, which->FindAttr("port", 6379),
               which->FindAttr("connect_timeout", static_cast<unsigned>(defaults::connect_timeout)), db, flag))
                  return result.release();
         }
         else
            throw ConfigurationError("redis: host attribute must be given when using redis");
      }
      else
#endif
#if defined FIX8_HAVE_BDB
      if (type == "bdb")
      {
         unique_ptr<BDBPersister> result(new BDBPersister);
         if (result->initialise(dir, db, flag))
            return result.release();
      }
      else
#endif
      if (type == "file")
      {
         unique_ptr<FilePersister> result(new FilePersister(which->FindAttr("rotation", 0)));
         if (result->initialise(dir, db, flag))
            return result.release();
      }
   }

   return nullptr;
}

Schedule Configuration::create_schedule

(

const XmlElement *

from

)

const

Create schedule object from a session entity.

Parameters

from	xml entity to search

Returns

Schedule

Definition at line 131 of file configuration.cpp.

References FIX8::decode_dow(), XmlElement::FindAttr(), FIX8::Tickval::get_ticks(), XmlElement::GetAttr(), FIX8::Tickval::is_errorval(), and FIX8::Tickval::minute.

{
   Tickval start(get_time_field(which, "start_time", true));
   if (!start.is_errorval())
   {
      const int utc_offset(which->FindAttr("utc_offset_mins", 0)); // utc_offset is in minutes
      const unsigned duration(which->FindAttr("duration", 0));
      Tickval end(get_time_field(which, "end_time", true));

      if (end.is_errorval())
      {
         if (duration) // duration is in minutes
            end = start.get_ticks() + duration * Tickval::minute;
      }
      else
      {
         if (end <= start)
            throw ConfigurationError("Schedule end time cannot be equal to or before session start time");
      }
      string daytmp;
      const int start_day(which->GetAttr("start_day", daytmp) ? decode_dow(daytmp) : -1);
      const int end_day(which->GetAttr("end_day", daytmp) ? decode_dow(daytmp) : start_day < 0 ? -1 : start_day);
      return {start, end, Tickval(static_cast<Tickval::ticks>(duration)), utc_offset, start_day, end_day};
   }

   return {};
}

Session_Schedule * Configuration::create_session_schedule

(

const XmlElement *

from

)

const

Create a new session schedule object from a session entity.

Parameters

from	xml entity to search

Returns

new Session_Schedule or 0 if unable to create

Definition at line 160 of file configuration.cpp.

References find_group(), XmlElement::FindAttr(), and XmlElement::GetAttr().

Referenced by FIX8::Session::start().

{
   string name;
   const XmlElement *which(0);
   if (from_or_default(from, "schedule", name) && (which = find_group(g_schedules, name)))
   {
      Schedule sch(create_schedule(which));
      f8String reject_text("Business messages are not accepted now.");
      which->GetAttr("reject_text", reject_text); // can't use FindAttr since istream is delimeter sensitive
      const int reject_code(which->FindAttr("reject_code", 0));
      return new Session_Schedule(sch, reject_code, reject_text);
   }

   return nullptr;
}

const XmlElement* FIX8::Configuration::find_element ( const std::string &  tag, const ConfigMap &  from  ) const

inlineprivate

Find an xml entity by tag in the supplied map.

Parameters

tag	the tag to find
from	the map to search

Returns

the found entity or 0 if not found

Definition at line 105 of file configuration.hpp.

References XmlElement::end().

Referenced by find_group().

      { ConfigMap::const_iterator itr(from.find(tag)); return itr != from.end() ? itr->second : nullptr; }

const XmlElement* FIX8::Configuration::find_group ( group_types  type, const std::string &  tag  ) const

inline

Find an element in a specified group.

Parameters

type	group type enum
tag	the tag to find

Returns

the found entity or 0 if not found

Definition at line 120 of file configuration.hpp.

References find_element().

      { return find_element(tag, _groups[type]); }

template<typename T >

T FIX8::Configuration::find_or_default ( const XmlElement *  from, const std::string &  tag, const T  def  ) const

inlineprotected

Find an attribute in the given XmlElement

Template Parameters

default

type

Parameters

from	the xml entity to search
tag	the tag to find
def	the default value if not found

Returns

the found attribute value or the default value if not found

Definition at line 166 of file configuration.hpp.

References XmlElement::FindAttr(), and XmlElement::HasAttr().

Referenced by get_always_seqnum_assign(), get_connect_timeout(), get_enforce_compids_flag(), get_heartbeat_interval(), get_ignore_logon_sequence_check_flag(), get_logfile_rotation(), get_no_chksum_flag(), get_permissive_mode_flag(), get_reset_sequence_number_flag(), get_retry_count(), get_retry_interval(), get_silent_disconnect(), get_tabsize(), get_tcp_keepalive(), get_tcp_linger(), get_tcp_nodelay(), get_tcp_recvbuf_sz(), get_tcp_reuseaddr(), get_tcp_sendbuf_sz(), and get_version().

   {
      if (from)
      {
         if (from->HasAttr(tag))
            return from->FindAttr(tag, def);
         if (_default)
            return _default->FindAttr(tag, def);
      }
      return def;
   }

bool FIX8::Configuration::from_or_default ( const XmlElement *  from, const f8String &  tag, f8String &  target  ) const

inlineprotected

Search the given element for a tag or look in the default element

Parameters

from	the xml entity to search
tag	the tag to find
target	place to put the resul

Returns

true if found and stored

Definition at line 129 of file configuration.hpp.

References XmlElement::GetAttr().

Referenced by get_string_field().

      { return (from && from->GetAttr(tag, target)) || (_default && _default->GetAttr(tag, target)); }

Poco::Net::SocketAddress Configuration::get_address

(

const XmlElement *

from

)

const

Extract the ip address and port from a session entity.

Parameters

from	xml entity to search

Returns

Poco::Net::SocketAddress

Definition at line 83 of file configuration.cpp.

{
   Poco::Net::SocketAddress to;
   string ip, port;
   if (from_or_default(from, "ip", ip) && from_or_default(from, "port", port))
      to = Poco::Net::SocketAddress(ip, port);

   return to;
}

size_t Configuration::get_addresses	(	const XmlElement *	from,
		std::vector< Server > &	target
	)		const

Extract the ip addresses from a server_group entity.

Parameters

from	xml entity to search
target	target vector of Server to store addresses

Returns

number of addresses stored

Definition at line 105 of file configuration.cpp.

References XmlElement::find(), find_group(), and FIX8::defaults::login_retries.

{
   string name;
   const XmlElement *which;
   if (from_or_default(from, "server_group", name) && (which = find_group(g_server_group, name)))
   {
      XmlElement::XmlSet slist;
      if (which->find("server_group/server", slist))
      {
         const Poco::Net::SocketAddress empty_addr;
         for(const auto *pp : slist)
         {
            string name;
            Poco::Net::SocketAddress addr(get_address(pp));
            if (pp->GetAttr("name", name) && addr != empty_addr && pp->FindAttr("active", true))
               target.push_back(Server(name, pp->FindAttr("max_retries", static_cast<int>(defaults::login_retries)), addr,
                  pp->FindAttr("reset_sequence_numbers", false)));
         }
      }
      return target.size();
   }

   return 0;
}

unsigned Configuration::get_all_sessions	(	std::vector< const XmlElement * > &	target,
		const Connection::Role	role = Connection::cn_unknown
	)		const

Get all active sessions that have been read; filter by role if desired.

Parameters

target	vector to place results
role	role to filter (cn_unknown means all)

Returns

number of sessions found

Definition at line 372 of file configuration.cpp.

References FIX8::Connection::cn_unknown.

{
   for (const auto *pp : _allsessions)
      if (role == Connection::cn_unknown || get_role(pp) == role)
         target.push_back(pp);
   return static_cast<unsigned>(target.size());
}

bool FIX8::Configuration::get_always_seqnum_assign ( const XmlElement *  from, const bool  def = false  ) const

inline

Extract the always_seqnum_assign flag from a session entity.

Parameters

from	xml entity to search
def	default value if not found

Returns

true if always_seqnum_assign flag was passed and was true

Definition at line 427 of file configuration.hpp.

References find_or_default().

Referenced by FIX8::SessionConfig::SessionConfig().

      { return find_or_default(from, "always_seqnum_assign", def); }

unsigned FIX8::Configuration::get_connect_timeout ( const XmlElement *  from, const unsigned  def = defaults::connect_timeout  ) const

inline

Extract the connect_timeout interval (sec) from a session entity.

Parameters

from	xml entity to search
def	default value if not found

Returns

the connect_timeout wait 10 if not found

Definition at line 289 of file configuration.hpp.

References find_or_default().

Referenced by FIX8::SessionConfig::SessionConfig().

      { return find_or_default(from, "connect_timeout", def); }

default_appl_ver_id FIX8::Configuration::get_default_appl_ver_id ( const XmlElement *  from ) const

inline

Extract default_appl_ver_id from a session entity.

Parameters

from	xml entity to search

Returns

target default_appl_ver_id

Definition at line 438 of file configuration.hpp.

References get_string_field().

Referenced by FIX8::SessionConfig::SessionConfig().

      { default_appl_ver_id to; return get_string_field(from, "default_appl_ver_id", to); }

bool FIX8::Configuration::get_enforce_compids_flag ( const XmlElement *  from, const bool  def = true  ) const

inline

Extract the enforce_compids flag. When false, compids are not checked.

Parameters

from	xml entity to search
def	default value if not found

Returns

true if enforce_compids flag was passed and was true

Definition at line 392 of file configuration.hpp.

References find_or_default().

Referenced by FIX8::SessionConfig::SessionConfig().

      { return find_or_default(from, "enforce_compids", def); }

unsigned FIX8::Configuration::get_heartbeat_interval ( const XmlElement *  from, const unsigned  def = defaults::hb_interval  ) const

inline

Extract the heartbeat interval from a session entity.

Parameters

from	xml entity to search
def	default value if not found

Returns

the heartbeat interval version or 0 if not found

Definition at line 350 of file configuration.hpp.

References find_or_default().

Referenced by FIX8::SessionConfig::SessionConfig().

      { return find_or_default(from, "heartbeat_interval", def); }

bool FIX8::Configuration::get_ignore_logon_sequence_check_flag ( const XmlElement *  from, const bool  def = false  ) const

inline

Extract the ignore_logon_sequence_check flag from a session entity.

Parameters

from	xml entity to search
def	default value if not found

Returns

true if ignore_logon_sequence_check flag was passed and was true

Definition at line 399 of file configuration.hpp.

References find_or_default().

Referenced by FIX8::Session::sequence_check().

      { return find_or_default(from, "ignore_logon_sequence_check", def); }

Poco::Net::IPAddress Configuration::get_ip

(

const XmlElement *

from

)

const

Extract the ip address from a session entity.

Parameters

from	xml entity to search

Returns

Poco::Net::IPAddress

Definition at line 94 of file configuration.cpp.

{
   Poco::Net::IPAddress to;
   string ip;
   if (from_or_default(from, "ip", ip))
      to = Poco::Net::IPAddress(ip);

   return to;
}

unsigned FIX8::Configuration::get_logfile_rotation ( const XmlElement *  from, const unsigned  def = defaults::log_rotation  ) const

inline

Extract the logfile rotation count.

Parameters

from	xml entity to search
def	default value if not found

Returns

the logfile rotation value or 5 if not found

Definition at line 343 of file configuration.hpp.

References find_or_default().

      { return find_or_default(from, "rotation", def); }

template<typename T >

T FIX8::Configuration::get_logflags	(	const std::string &	tag,
		const std::vector< std::string > &	names,
		const XmlElement *	from,
		Logger::LogPositions *	positions = nullptr
	)		const

Extract the logflags from the flags attribute in a log entity.

Template Parameters

T	ebitset type

Parameters

tag	attribute tag to search for
names	vector of names for each enumeration
from	xml entity to search
positions	vector to place enumeration position in

Returns

LogFLags object

template<typename T >

T FIX8::Configuration::get_logflags	(	const string &	tag,
		const vector< string > &	names,
		const XmlElement *	from,
		Logger::LogPositions *	positions
	)		const

Definition at line 351 of file configuration.cpp.

References XmlElement::GetAttr(), and FIX8::trim().

{
   T flags;
   string flags_str;
   if (from && from->GetAttr(tag, flags_str))
   {
      istringstream istr(flags_str);
      for(char extr[32]; !istr.get(extr, sizeof(extr), '|').fail(); istr.ignore(1))
      {
         string result(extr);
         const int evalue(flags.set(names, trim(result), true, true));
         if (positions && evalue >= 0)
            positions->push_back(evalue);
      }
   }

   return flags;
}

string & Configuration::get_logname	(	const XmlElement *	from,
		std::string &	to,
		const SessionID *	sid = nullptr
	)		const

Extract the session log filename address from a session entity.

Parameters

from	xml entity to search
to	target logfile string
sid	optional session id to build name from

Returns

target string

Definition at line 339 of file configuration.cpp.

References XmlElement::FindAttr(), FIX8::SessionID::get_senderCompID(), and FIX8::SessionID::get_targetCompID().

{
   if (sid)
      to += ('.' + sid->get_senderCompID()() + '.' + sid->get_targetCompID()());
   else if (from && from->FindAttr("use_session_id", false))
      to += ('.' + get_sender_comp_id(from)() + '.' + get_target_comp_id(from)());

   return to;
}

bool FIX8::Configuration::get_no_chksum_flag ( const XmlElement *  from, const bool  def = false  ) const

inline

Extract the get_no_chksum_flag flag from a session entity.

Parameters

from	xml entity to search
def	default value if not found

Returns

true if get_no_chksum_flag flag was passed and was true

Definition at line 406 of file configuration.hpp.

References find_or_default().

Referenced by FIX8::SessionConfig::SessionConfig().

      { return find_or_default(from, "no_chksum", def); }

bool FIX8::Configuration::get_permissive_mode_flag ( const XmlElement *  from, const bool  def = false  ) const

inline

Extract the get_permissive_mode_flag flag from a session entity.

Parameters

from	xml entity to search
def	default value if not found

Returns

true if get_permissive_mode_flag flag was passed and was true

Definition at line 413 of file configuration.hpp.

References find_or_default().

Referenced by FIX8::SessionConfig::SessionConfig().

      { return find_or_default(from, "permissive_mode", def); }

ProcessModel Configuration::get_process_model

(

const XmlElement *

from

)

const

Extract process model.

Parameters

from	xml entity to search

Returns

pm_thread, pm_pipeline or pm_coro

Definition at line 381 of file configuration.cpp.

References FIX8::enum_str_get(), FIX8::pm_pipeline, and FIX8::pm_thread.

Referenced by FIX8::ClientSession< T >::ClientSession(), and server_process().

{
   static const vector<f8String> process_strings { "threaded", "pipelined", "coroutine" };
   string pm;
   return from_or_default(from, "process_model", pm)
      ? enum_str_get(process_strings, pm, pm_thread) : pm_pipeline; // default to pipelined
}

bool FIX8::Configuration::get_reset_sequence_number_flag ( const XmlElement *  from, const bool  def = false  ) const

inline

Extract the reset_sequence_number flag from a session entity.

Parameters

from	xml entity to search
def	default value if not found

Returns

true if reset_sequence_number flag was passed and was true

Definition at line 420 of file configuration.hpp.

References find_or_default().

Referenced by FIX8::SessionConfig::SessionConfig().

      { return find_or_default(from, "reset_sequence_numbers", def); }

unsigned FIX8::Configuration::get_retry_count ( const XmlElement *  from, const int  def = defaults::login_retries  ) const

inline

Extract the login retry count from a session entity.

Parameters

from	xml entity to search
def	default value if not found

Returns

the retry count or 10 if not found

Definition at line 303 of file configuration.hpp.

References find_or_default().

Referenced by FIX8::SessionConfig::SessionConfig().

   {
      const int rc(find_or_default(from, "login_retries", def));
      if (rc < 0)
         throw ConfigurationError("retry count must be >= 0");
      return rc;
   }

unsigned FIX8::Configuration::get_retry_interval ( const XmlElement *  from, const unsigned  def = defaults::retry_interval  ) const

inline

Extract the login retry wait interval (ms) from a session entity.

Parameters

from	xml entity to search
def	default value if not found

Returns

the retry wait interval or 5000 if not found

Definition at line 296 of file configuration.hpp.

References find_or_default().

Referenced by FIX8::SessionConfig::SessionConfig().

      { return find_or_default(from, "login_retry_interval", def); }

Connection::Role Configuration::get_role

(

const XmlElement *

from

)

const

Extract the role from a session entity.

Parameters

from	xml entity to search

Returns

the connection role or Connection::cn_unknown if not found

Definition at line 74 of file configuration.cpp.

References FIX8::Connection::cn_acceptor, FIX8::Connection::cn_initiator, and FIX8::Connection::cn_unknown.

{
   string role;
   return from_or_default(from, "role", role)
      ? role % "initiator" ? Connection::cn_initiator
      : role % "acceptor" ? Connection::cn_acceptor : Connection::cn_unknown : Connection::cn_unknown;
}

const XmlElement* FIX8::Configuration::get_root ( ) const

inline

Return ptr to the root XmlElement

Returns

root element

Definition at line 502 of file configuration.hpp.

References _root.

{ return _root; }

sender_comp_id FIX8::Configuration::get_sender_comp_id ( const XmlElement *  from ) const

inline

Extract sendercompid from a session entity.

Parameters

from	xml entity to search

Returns

target sender_comp_id

Definition at line 444 of file configuration.hpp.

References get_string_field().

      { sender_comp_id to; return get_string_field(from, "sender_comp_id", to); }

const XmlElement* FIX8::Configuration::get_session ( const unsigned  num ) const

inline

Find a session entity by index.

Parameters

num	index of session

Returns

the session entity or 0 if not found

Definition at line 243 of file configuration.hpp.

      { return num < _allsessions.size() ? _allsessions[num] : nullptr; }

bool FIX8::Configuration::get_silent_disconnect ( const XmlElement *  from, const bool  def = false  ) const

inline

Extract the silent disconnect flag.

Parameters

from	xml entity to search
def	default value if not found

Returns

true if silent_disconnect flag was passed and was true

Definition at line 385 of file configuration.hpp.

References find_or_default().

Referenced by FIX8::SessionConfig::SessionConfig().

      { return find_or_default(from, "silent_disconnect", def); }

template<typename T >

T& FIX8::Configuration::get_string_field ( const XmlElement *  from, const std::string &  tag, T &  to  ) const

inlineprotected

Find a fix8 field typed value by tag from an xml entity.

Template Parameters

location

type

Parameters

from	the xml entity to search
tag	the tag to find
to	location to store target

Returns

the target

Definition at line 139 of file configuration.hpp.

References from_or_default().

Referenced by get_default_appl_ver_id(), get_sender_comp_id(), and get_target_comp_id().

   {
      std::string val;
      if (from_or_default(from, tag, val))
         to.set(val);
      return to;
   }

unsigned FIX8::Configuration::get_tabsize ( const XmlElement *  from, const unsigned  def = defaults::tabsize  ) const

inline

Extract the Message printer tabsize from a session entity.

Parameters

from	xml entity to search
def	default value if not found

Returns

the tabsize version or defaults::tabsize if not found

Definition at line 336 of file configuration.hpp.

References find_or_default().

Referenced by FIX8::SessionConfig::SessionConfig().

      { return find_or_default(from, "tabsize", def); }

target_comp_id FIX8::Configuration::get_target_comp_id ( const XmlElement *  from ) const

inline

Extract targetcompid from a session entity.

Parameters

from	xml entity to search

Returns

target target_comp_id

Definition at line 450 of file configuration.hpp.

References get_string_field().

      { target_comp_id to; return get_string_field(from, "target_comp_id", to); }

bool FIX8::Configuration::get_tcp_keepalive ( const XmlElement *  from, const bool  def = false  ) const

inline

Extract the tcp keepalive flag.

Parameters

from	xml entity to search
def	default value if not found

Returns

false if keepalive flag was passed and was false

Definition at line 364 of file configuration.hpp.

References find_or_default().

      { return find_or_default(from, "tcp_keepalive", def); }

int FIX8::Configuration::get_tcp_linger ( const XmlElement *  from, const int  def = -1  ) const

inline

Extract the socket linger setting from a session entity.

Parameters

from	xml entity to search
def	default value if not found

Returns

the socket linger value (secs)

Definition at line 378 of file configuration.hpp.

References find_or_default().

      { return find_or_default(from, "tcp_linger", def); }

bool FIX8::Configuration::get_tcp_nodelay ( const XmlElement *  from, const bool  def = true  ) const

inline

Extract the tcp nodelay flag.

Parameters

from	xml entity to search
def	default value if not found

Returns

false if nodelay flag was passed and was false

Definition at line 357 of file configuration.hpp.

References find_or_default().

      { return find_or_default(from, "tcp_nodelay", def); }

unsigned FIX8::Configuration::get_tcp_recvbuf_sz ( const XmlElement *  from, const unsigned  def = 0  ) const

inline

Extract the tcp recv buffer size

Parameters

from	xml entity to search
def	default value if not found

Returns

the recv buffer size count or 0 if the default should be used

Definition at line 315 of file configuration.hpp.

References find_or_default().

Referenced by FIX8::SessionConfig::SessionConfig().

      { return find_or_default(from, "tcp_recv_buffer", def); }

bool FIX8::Configuration::get_tcp_reuseaddr ( const XmlElement *  from, const bool  def = false  ) const

inline

Extract the tcp reuseaddr flag.

Parameters

from	xml entity to search
def	default value if not found

Returns

false if reuseaddr flag was passed and was false

Definition at line 371 of file configuration.hpp.

References find_or_default().

      { return find_or_default(from, "tcp_reuseaddr", def); }

unsigned FIX8::Configuration::get_tcp_sendbuf_sz ( const XmlElement *  from, const unsigned  def = 0  ) const

inline

Extract the tcp send buffer size

Parameters

from	xml entity to search
def	default value if not found

Returns

the send buffer size count or 0 if the default should be used

Definition at line 322 of file configuration.hpp.

References find_or_default().

Referenced by FIX8::SessionConfig::SessionConfig().

      { return find_or_default(from, "tcp_send_buffer", def); }

Tickval::ticks FIX8::Configuration::get_time_field ( const XmlElement *  from, const std::string &  tag, bool  timeonly = false  ) const

inlineprotected

Find a session time field by tag from an xml entity.

Parameters

from	the xml entity to search
tag	the tag to find
timeonly	if true, only use the time part

Returns

Tickval::ticks time or errorticks if not found

Definition at line 152 of file configuration.hpp.

References FIX8::Tickval::errorticks(), XmlElement::GetAttr(), and FIX8::time_parse().

   {
      std::string time_str;
      return from && from->GetAttr(tag, time_str) && time_str.size() == 8
         ? time_parse(time_str.c_str(), 8, timeonly) : Tickval::errorticks();
   }

unsigned FIX8::Configuration::get_version ( const XmlElement *  from, const unsigned  def = 0  ) const

inline

Extract the FIX version from a session entity.

Parameters

from	xml entity to search
def	default value if not found

Returns

the FIX version or 0 if not found

Definition at line 329 of file configuration.hpp.

References find_or_default().

      { return find_or_default(from, "fix_version", def); }

unsigned FIX8::Configuration::load_map ( const std::string &  tag, ConfigMap &  map_name, const bool  is_session = false  )

inlineprivate

Load a repeating group into a supplied map.

Parameters

tag	the tag to find
map_name	the target map
is_session	if true, special case for session map

Returns

the number of elements inserted

Definition at line 184 of file configuration.hpp.

References XmlElement::find().

   {
      XmlElement::XmlSet slist;
      if (_root->find(tag, slist))
      {
         for(const auto *pp : slist)
         {
            std::string name;
            if (pp->GetAttr("name", name) && is_session ? pp->FindAttr("active", false) : true)
            {
               map_name.insert({name, pp});
               if (is_session)
                  _allsessions.push_back(pp);
            }
         }
      }

      return static_cast<unsigned>(map_name.size());
   }

int Configuration::process

(

)

Process the config file.

Returns

the number of sessions processed (found)

Definition at line 52 of file configuration.cpp.

Referenced by Configuration().

{
   if (!_root)
      throw ConfigurationError("could not create root xml entity");

   using item = tuple<f8String, group_types, bool>;
   static const item items[]
   {
      { item("session", g_sessions, true) },             { item("log", g_loggers, false) },
      { item("server_group", g_server_group, false) },   { item("client_group", g_client_group, false) },
      { item("ssl_context", g_ssl_context, false) },     { item("schedule", g_schedules, false) },
      { item("login", g_logins, false) },                { item("persist", g_persisters, false) }
   };

   for (auto &pp : items)
      if (!load_map("fix8/" + get<0>(pp), _groups[get<1>(pp)], get<2>(pp)) && get<2>(pp))
         throw ConfigurationError("could not locate server session in configuration", get<0>(pp));

   return static_cast<int>(_groups[g_sessions].size());
}

Member Data Documentation

std::vector<const XmlElement *> FIX8::Configuration::_allsessions

private

Definition at line 99 of file configuration.hpp.

const XmlElement * FIX8::Configuration::_default

private

Definition at line 96 of file configuration.hpp.

std::vector<ConfigMap> FIX8::Configuration::_groups

private

Definition at line 98 of file configuration.hpp.

RegExp Configuration::_ipexp

staticprivate

Definition at line 94 of file configuration.hpp.

const XmlElement* FIX8::Configuration::_root

private

Definition at line 96 of file configuration.hpp.

Referenced by get_root().

---

The documentation for this class was generated from the following files:

• configuration.hpp
• configuration.cpp
